CURTIS ROTARY SCREW COMPRESSOR PARTS:
125HP - 350HP ROTARY SCREW PARTS
Add caption
ROTARY SCREW AIR COMPRESSOR SALES AND SERVICE
|
www.hkaircompressors.com
214-428-2868
125HP - 350HP ROTARY SCREW COMPRESSORS
WWW.HKAIRCOMPRESSORS.COM
214-428-2868
NX110 | NX160-185 | |||
Part Name | Qty | Notes | ||
Part No. | Part No. | |||
2605124900 | 2605124630 | Base | 1 | |
2605125010 | 2605124730 | Front left angel steel | 5 | |
2605125030 | 2605124750 | Front middle angel steel | 1 | |
2605132580 | 2605132660 | Fix Door Pillar | 2 | |
2605124980 | 2605124700 | Door | 5 | |
2605132570 | 2605132650 | Fix Door | 1 | |
2605125000 | 2605124720 | Front Left Support | 1 | |
2605125020 | 2605124740 | Pillar | 2 | |
2605124990 | 2605124710 | Back Left Support | 1 | |
2605125140 | 2605124890 | Front Frame | 1 | |
2605125100 | 2605124820 | Top Back Right Cover | 1 | |
2605122030 | Pre-Filter Screen | 3 | ||
2605125150 | 2605124850 | Top Left Cover | 1 | |
2605125090 | 2605124860 | Back Frame | 1 | |
2605125040 | 2605124760 | Fan support Ass'y | 1 | |
2116100051 | Jalousie | 1 | ||
Fan | 1 | 40W,110V, UL | ||
2106130876 | ||||
Fan | 2 | Qty. For VFD | ||
2605124970 | 2605124690 | Door | 1 | |
2605124960 | 2605124680 | Door | 1 | |
2605132600 | 2605132680 | Angel Steel | 1 | |
2108070170 | Line Protector | 2 | 82*89.5*110mm | |
2605124950 | 2605124670 | Starter Box | 1 | |
2605125810 | 2605125820 | Pre-Filter Screen | 1 | |
2605108050* | 2605125830* | Pre-Filter Screen | 3 | NX110 Right Piece |
2605108000* | — | Pre-Filter Screen | 4 | NX110 Left Piece |
2119020129 | 2119020129 | Square Key | 1 | |
2605670110 | 2605670110 | Triangle Key | 1 |
www.hkaircompressors.com
WWW.HKAIRCOMPRESSORS.COM
CURTIS ROTARY SCREW AIR END
Drive System Parts List | |||||
NX110 | NX160-185 | ||||
No. | Part Name | Qty | Notes | ||
Part No. | Part No. | ||||
2106024076 | — | 110kW,460V,60HZ VFD | |||
— | 2106023665 | 160kW,460V,60HZ | |||
— | 2106023667 | 185kW,460V,60HZ | |||
— | 2106024074 | 160kW,460V,60HZ VFD | |||
— | FMT934H4Q | 185kW,460V,60HZ VFD | |||
2113030047 | — | 1 | |||
2 | Coupling | ||||
— | 2113030083 | 1 | |||
2605220901 | 2605220901 | Spider R90 | 1 | ||
Contact Factory | BSA51SG | 1 | |||
3 | |||||
Contact Factory | BSA61SG | 1 | |||
Intake System & Accessories Parts List | |||||
NX110 | NX160-185 | Part Name | Qty | ||
2116040231 | 2116040233 | Air Filter Assembly | 1 | ||
2605542340 | 2605542370 | Air Filter Support | 2 | ||
2116040232 | FRN24089-1 | Air Filter Elements | 1 | ||
2101440039 | 2101440046 | Hose Clamp | 2 | ||
2605417020 | 2605417090 | Suction Hose | 1 | ||
2105030210 | Switch | 1 | |||
2605360101 | — | Joint | 1 | ||
2104050195 | 2104050196 | Inlet Valve | 1 | ||
— | — | O-ring | 1 | ||
— | 2605313330 | Gasket | 1 | ||
2101080308 | Joint | 1 | G1/2",90° | ||
2605466830 | 2605466750 | Discharge Hose | 1 | ||
2605466800 | 2605466770 | Return Hose | 1 | ||
2605466920 | Bearing Lubrication Hose | 1 | NX110-132 | ||
2101080309 | Joint | 1 | G1/4”,90° | ||
2605539870 | Pre - Oil Filter | 1 | |||
2606271670 | Oil Filter Support | 1 | |||
2101060310 | Nipple | 1 | |||
2101080314 | — | ||||
Joint | 1 | ||||
— | 2101080304 | ||||
2605466840 | — | 1 | |||
Main Oil Inject Hose | |||||
— | 2605466740 | 1 | |||
2605362230 | 2605362260 | Gasket | 2 | ||
2101140036 | 2101140040 | Expansion hose | 1 | L=300 | |
2605417030 | — | ||||
Air Pipe | 1 | ||||
— | 2605417050 |
ROTARY SCREW COMPRESSOR SERVICE
No. | NX110 | NX160-185 | Part Name | Qty | Notes |
25 | 2101080306 | Joint | 2 | G1/2,0° | |
26 | 2605466910 | Oil pipe | 1 | ||
2605362220 | — | ||||
27 | Gasket | 1 | |||
— | 2605362250 | ||||
2101080309 | — | 1 | |||
28 | Joint | ||||
— | 2101080310 | 1 | |||
29 | 2105040252 | Temperature Sensor | 1 | G1/4",PT1000 | |
30 | 2109120008 | Oil Seal | 1 | BSP1/4” | |
2101080309 | — | 1 | |||
31 | Joint | ||||
— | 2101080311 | 1 | |||
32 | 2104010204 | Ball Valve | 1 | 1/2" | |
2605043330 | — | ||||
33 | Cover | 2 | |||
— | 2605220640 | ||||
— | — | ||||
34 | Limit set | 1 | |||
— | 2605043310 | ||||
2101080317 | — | ||||
35 | Joint | 1 | |||
— | 2101080304 |

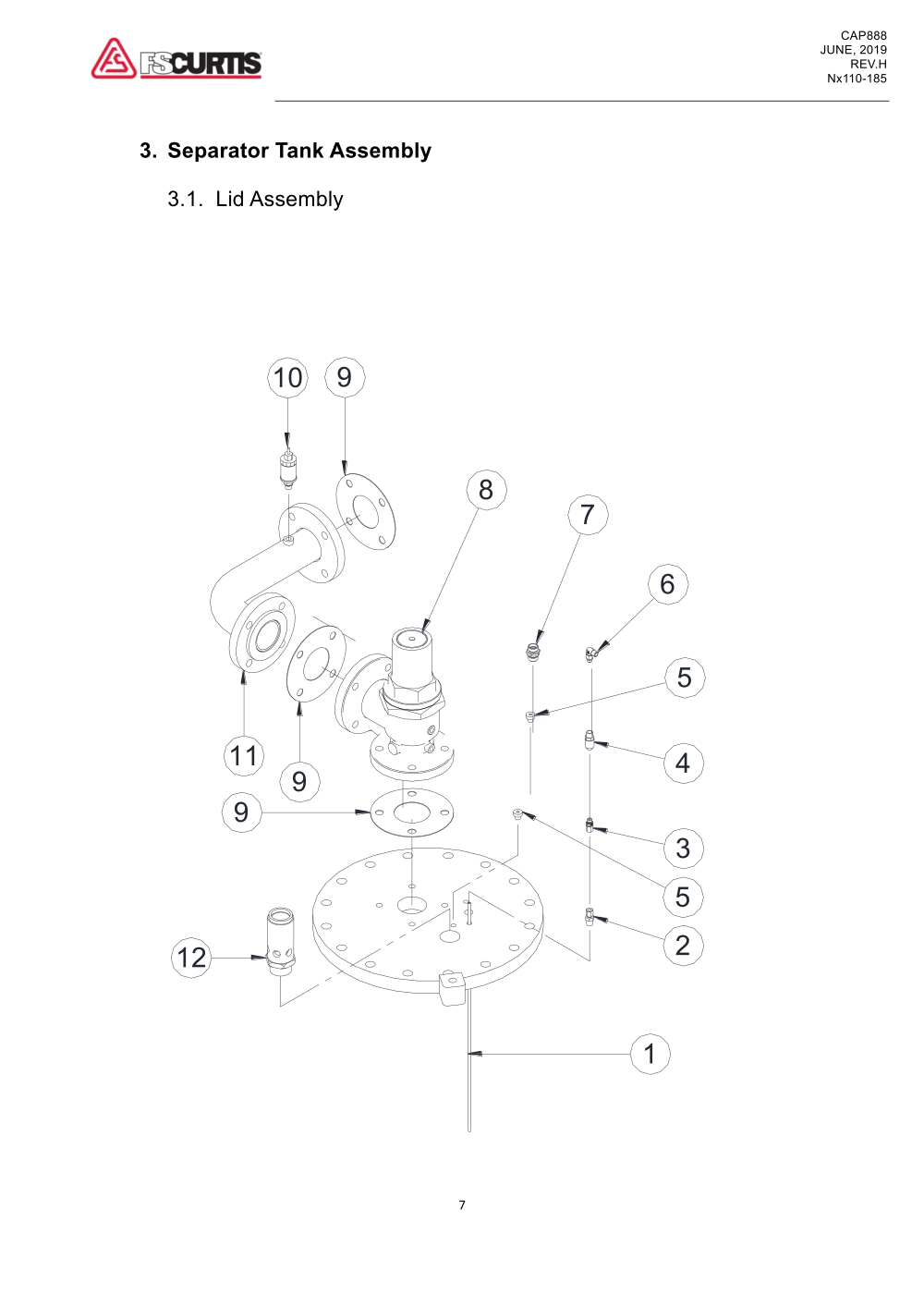

ROTARY SCREW SERVICE
214-428-2868
NX110 | NX160-185 | ||||
No. | Part Name | Qty | Notes | ||
Part No. | Part No. | ||||
1 | 2605417330 | 2605417140 | Oil Return Pipe | 1 | Ø6×1 |
2 | 2101080313 | Joint | 1 | G1/4" | |
3 | 2101089958 | Joint | 1 | G1/4” | |
4 | 2605332920 | Check Valve | 1 | 1/8” | |
3 | NX110A/W | ||||
5 | 2102029995 | Plug | |||
2 | NX160~185A/W | ||||
6 | 2101080307 | Joint | 1 | G1/4”,90° | |
7 | 2101080306 | Joint | 1 | G1/2” | |
Minimum | |||||
8 | 2104020058 | 2104020039 | 1 | ||
Pressure Valve | |||||
9 | 2605362310 | 2605362240 | Gasket | 3 | |
Pressure | |||||
10 | 2105040250 | 1 | G1/4”,4-20mA,6M | ||
Sensor | |||||
11 | 2605417320 | 2605417080 | Pipe | 1 | |
12 | FRN42827 | Safety Valve | 1 |
ROTARY SCREW SERVICE NX110 |
NX160-185 | ||||
Item No. | Part Name | QTY. | Notes | ||
Part No. | Part No. | ||||
1 | 2605273531 | 2605277060 | Gasket | 1 | |
2 | 2116010179 | 2116010180 | Air & Oil Separator | 1 | |
2111010165 | —— | O-Ring | 1 | Ø329.5 | |
3 | |||||
—— | 2111010169 | O-Ring | 1 | Ø399.5 | |
4 | 2102029995 | Plug | 1 | G1/4" | |
5 | F1481502 | Separator dP Switch | 1 | G1/4”,4-20mA,6M | |
6 | 2111010176 | O-Ring | 1 | Ø 419.5 | |
7 | FRN42827 | Safety Valve | 1 | ||
8 | 2605277180 | 2605277190 | Oil Receiver | 1 | |
9 | 2605276820 | Oil Fill Cap | 1 | G1” | |
10 | 2109120012 | Oil Seal | 1 | BSP1" | |
11 | 2605466910 | Pipe | 1 | 10×1 | |
12 | 2101080306 | Joint | 2 | G1/2" | |
13 | 2605270410 | Sight Glass | 1 | ||
14 | 2111010508 | O-Ring | 4 | φ10 | |
15 | 2605270430 | Bolt | 2 | ||
16 | 2102020156 | Plug | 1 | G1-1/2” | |
17 | 2104010204 | Ball Valve | 1 | 1/2" | |
18 | 2101090032 | Joint | 1 | G1/4” | |
19 | 2105010226 | Pressure Gauge | 1 | 2.5MPa |
NX110 | NX160-185 | ||||
Item No. | Part Name | QTY. | Notes | ||
Part No. | Part No. | ||||
Differential | |||||
1 | 2105030133 | 1 | |||
Pressure Switch | |||||
2 | 2605531590 | Oil Filter Support | 1 | ||
3 | 2605531610 | Oil filter base | 1 | 227L/min | |
4 | 2605362320 | 2605362280 | Flange | 1 | |
5 | 2101090030 | 2101090029 | Joint | 1 | |
6 | 2101380032 | 2101380031 | Cutting Ring | 2 | |
7 | 2101370027 | 2101370026 | Cutting Nut | 2 | |
8 | 2605417360 | 2605417100 | Oil Pipe | 1 | |
9 | FRN28205 | Oil filter | 2 | 23μ | |
10 | 2101080314 | 2101080302 | Joint | 1 | 90° |
11 | 2101080315 | 2101080303 | Joint | 1 | 0° |
Temperature | |||||
12 | 2104080123 | 2104080122 | 1 | 71-83℃ | |
Control Valve | |||||
13 | 2101080316 | 2101080304 | Joint | 4 | 0° |
14 | 2101470139 | Gasket | 2 | NXE2" | |
15 | 2105010224 | Pressure Gauge | 1 | 1.6MPa | |
16 | 2605417300 | 2605417130 | Oil Pipe | 1 | |
17 | 2605417130 | Bolt | 1 | M12 |
www.hkaircompressors.com
214-428-2868
NX110 | NX160-185 | ||||||
Item No. | Part Name | QTY. | Notes | ||||
Part No. | Part No. | ||||||
1 | 2106023467 | 2106023468 | Fan Motor | 2 | 460V,60Hz | ||
Centrifugal | |||||||
2 | 2106149984 | 2106140058 | 2 | ||||
Fan Assembly | |||||||
Ball Valve | |||||||
3 | 2104010204 | 1 | 1/2" | ||||
4 | 2605466820 | 2605466760 | Oil Hose | 1 | |||
5 | 2101080314 | 2101080302 | Joint | 1 | 90° | ||
6 | 2605466810 | 2605466730 | Oil Hose | 1 | |||
7 | 2101080306 | Joint | 1 | G1/2” | |||
Discharge | |||||||
8 | 2605466830 | 2605466750 | 1 | ||||
Hose | |||||||
9 | 2101080308 | Joint | 1 | G1/2",90° | |||
10 | 2101080316 | 2101080304 | Joint | 1 | G1-1/4” | ||
Heat | |||||||
11 | 2117010260 | 2117010259 | 1 | ||||
exchanger | |||||||
12 | 2101230083 | 2101230081 | Flange | 1 | |||
13 | 2605362240 | 2605362260 | Gasket | 1 | |||
14-1 | 2605125040-temp01 | 2605124760-temp01 | Wind Scooper | 1 | |||
Fan Motor | |||||||
14-2 | 2605125040-temp02 | 2605124760-temp02 | 2 | ||||
Cover | |||||||
Wind Box | |||||||
14-3 | 2605125040-temp03 | 2605124760-temp03 | 1 | ||||
14 | Support | Consult Factory | |||||
14-4 | 2605125040-temp04 | 2605124760-temp04 | Cover | 3 | |||
Right Wind | |||||||
14-5 | 2605125040-temp05 | 2605124760-temp05 | 1 | ||||
Box | |||||||
14-6 | 2605125040-temp06 | 2605124760-temp06 | Left Wind Box | 1 | |||
Fan Collector | |||||||
—— | 2605122560 | 2605122970 | 2 | *Adapter | |||
Adapter Plate |
control box assembly for a rotary screw compressor
control box assembly for a rotary screw compressor
Item No. | Part No. | Part Name | Qty | Notes |
2107051755 | 1 | kW, 460V, 60Hz | ||
2107051757 | 1 | kW, 460V, 60Hz | ||
1 | 2107051759 | Control Panel Assembly | 1 | kW, 460V, 60Hz |
2107070654 | 1 | 110kW, 460V, 60Hz VFD | ||
2107070655 | 1 | 160-185kW, 460V, 60Hz VFD | ||
2 | FSK-NXTC | I Touch Controller | 1 | |
3 | 2108020031 | Emergency Stop Button | 1 | Included in Ctrl Panel |
F1491080 | Drive CIMR-AU4A 460V 208A | 110kW VFD | ||
4 | 1 | |||
F1491082 | Drive CIMR-AU4A 460V 296A | 160-185kW VFD |
rotary screw control panel
Item No. | Component Name | QTY. | Part Number | Notes |
Transformer | ||||
1 | 1 | 2108130690 | Nx110-185 460V/575V | |
PT1 | ||||
2108060525 | Nx110 460V, Nx160 575V | |||
Main / Contactor | ||||
2 | 1 | 2108060526 | Nx160 460V, Nx185 575V | |
Q2 | ||||
2108060527 | Nx185 460V | |||
2108060525 | Nx110 460V, Nx160 575V | |||
Delta-Contactor | ||||
3 | 1 | 2108060526 | Nx160 460V, Nx185 575V | |
Q4 | ||||
2108060527 | Nx185 460V | |||
Y-Contactor | 2108060524 | Nx110-160 460/575V, Nx185 575V | ||
4 | 1 | |||
Q3 | 2108060525 | Nx185 460V | ||
Overload | 2108010239 | Nx110 460V 110~135A | ||
1 | ||||
5 | Relay | 2108010242 | Nx160 460V 170~205A | |
F2 | 2108010243 | Nx185 460V 180~250A | ||
Fan contactor | ||||
6 | 2 | 2108060595 | Nx110-185 460/575V | |
Q5, Q7 | ||||
Fan Circuit Breaker | 2108050036 | Nx110 460V 2.8~4.0A | ||
7 | 1 | |||
QF1, QF2 | 2108050026 | Nx160-185 460V 4.5~6.3A | ||
8 | Fuse FU1, FU2 | 1/ea | FRN18316-2 | Nx110-185 460/575V |
9 | Fuse FU10 | 1 | FRN18316-2 | Nx110-185 460/575V |
10 | Fuse FU11 | 1 | FRN18347-1 | Nx110-185 460/575V |
214-428-2868
Item No. | Component Name | QTY. | Part Number | Notes |
1 | Transformer PT1 | 1 | 2108130690 | Nx110-185 460V |
Main Circuit Breaker | 2108050060 | Nx110 460V 250A | ||
2 | 1 | |||
QF0 | 2108050061 | Nx160-185 460V 400A | ||
3 | Fan contactor Q5 | 1 | 2108060595 | Nx110-185 460V |
4 | Fan contactor Q7 | 1 | 2108060565 | Nx110-185 460V |
Fan Circuit Breaker | 2108050036 | Nx110 460V 2.8~4.0A | ||
5 | 1 | |||
QF1, QF2 | 2108050026 | Nx160-185 460V 4.5~6.3A | ||
6 | Fuse FU1, FU2 | 1/ea | FRN18316-2 | Nx110-185 460V |
7 | Fuse FU10 | 1 | FRN18316-2 | Nx110-185 460V |
8 | Fuse FU11 | 1 | FRN18347-1 | Nx110-185 460V |
MINIMUM PRESSURE VALVE
NX110 | ||||
Item No. | Part Name | QTY. | Notes | |
Part No. | ||||
1 | 2104020058 | Minimum Pressure Valve | 1 | |
—— | Repair kit MPVL65 | 1 | ||
2 | Check Valve | 1 | ||
3 | Spring | 1 | ||
2605697170 | ||||
4 | Piston assembly | 1 | ||
5 | O-ring | 1 | ||
—— | Lubricant Tin | 1 |
NX160-185 | ||||
Item No. | Part Name | QTY. | Notes | |
Part No. | ||||
6 | 2104020039 | Minimum Pressure Valve | 1 | |
—— | Repair kit MPVL80 | 1 | ||
1 | O-ring | 1 | ||
2 | Check Valve | 1 | ||
3 | 2605694650 | Spring | 1 | |
4 | Piston assembly | 1 | ||
5 | O-ring | 1 | ||
—— | Lubricant Tin | 1 | ||
7 | 2605362240 | Gasket | 1 |
rotary screw intake valve assembly
Item No. | Part No. | Part Name | QTY. | Notes |
2104050195 | DN120 Inlet Valve | NX110A/W | ||
—— | 1 | |||
2104050196 | DN160 Inlet Valve | NX160~185A/W | ||
1 | —— | Control Block Complete | 1 | |
Modulation Blow Down | ||||
1-1 | 2605694850 | 1 | ||
Valve Pvvf18eno | ||||
1-2 | 2605698480 | Coil 120VAC | 1 | |
1-3 | 2104030003 | Modulating valve | ||
2 | 2605697150 | Servo Cylinder Repair Kit | 1 | |
2605697120 | Inlet Valve Body Repair | NX110A/W | ||
—— | 1 | |||
2605697130 | Kit | NX160~185A/W |
PART NUMBER | DESCRIPTION | PARTS | QTY |
OIL FILTER | 2 | ||
2000 / 6000 hour service kit | SECONDARY OIL FILTER | 1 | |
FSK-26NX110 | |||
Nx110 | OIL SAMPLE KIT | 1 | |
AIR FILTER | 1 | ||
OIL FILTER | 2 | ||
2000 / 6000 hour service kit | SECONDARY OIL FILTER | 1 | |
FSK-26NX160185 | |||
Nx160-185 | OIL SAMPLE KIT | 1 | |
AIR FILTER | 1 | ||
OIL FILTER | 2 | ||
SECONDARY OIL FILTER | 1 | ||
AIR FILTER | 1 | ||
FSK-4NX110 | 4000 hour service kit Nx110 | OIL SAMPLE KIT | 1 |
AIR OIL SEPARATOR | 1 | ||
SEPARATOR GASKET | 1 | ||
SEPARATOR O-RING | 1 | ||
OIL FILTER | 2 | ||
SECONDARY OIL FILTER | 1 | ||
AIR FILTER | 1 | ||
FSK-4NX160185 | 4000 hour service kit Nx160-185 | OIL SAMPLE KIT | 1 |
AIR OIL SEPARATOR | 1 | ||
SEPARATOR GASKET | 1 | ||
SEPARATOR O-RING | 1 |
PART NUMBER | DESCRIPTION | PARTS | QTY |
Inlet Valve Kit | 1 | ||
Thermal Valve Kit | 1 | ||
Min. Pressure Valve Kit | 1 | ||
OIL FILTER | 2 | ||
SECONDARY OIL FILTER | 1 | ||
FSK-8NX110 | 8000 hour Service Kit NX110 | ||
AIR FILTER | 1 | ||
AIR OIL SEPARATOR | 1 | ||
SEPARATOR GASKET | 1 | ||
OIL SAMPLE KIT | 1 | ||
SEPARATOR O-RING | 1 | ||
Inlet Valve Kit | 1 | ||
Thermal Valve Kit | 1 | ||
Min. Pressure Valve Kit | 1 | ||
OIL FILTER | 2 | ||
SECONDARY OIL FILTER | 1 | ||
FSK-8NX160185 | 8000 hour Service Kit NX160-185 | ||
AIR FILTER | 1 | ||
AIR OIL SEPARATOR | 1 | ||
SEPARATOR GASKET | 1 | ||
OIL SAMPLE KIT | 1 | ||
SEPARATOR O-RING | 1 |
214-428-2867
No comments:
Post a Comment
